Why Leveler Type Isn't Just a Spec Sheet Detail

Every dock leveler does the same basic job: bridge the gap and the height difference between your dock floor and a trailer bed so forklifts and pallet jacks can drive straight across. But "dock leveler" covers four genuinely different mechanisms, three different mounting styles, and a wide range of capacity ratings — and getting any one of those wrong shows up as a safety issue, a bottleneck at the door, or an incompatible part order six months from now. This guide walks through how to think about type, capacity, sizing, and environment so you're speccing (or identifying) the right unit the first time.

The Four Main Types of Dock Levelers

Mechanical Levelers

Spring-loaded and released with a pull chain, mechanical levelers are the simplest and least expensive design — no motor, no hydraulic pump, nothing to power. That simplicity comes with a tradeoff: operators have to physically walk the platform down, and the springs and linkages take direct wear every cycle. Mechanical units are the right call for low-traffic docks where budget matters more than cycle speed, but they generally need more frequent maintenance attention than powered alternatives over the life of the unit.

Hydraulic Levelers

A hydraulic cylinder raises and lowers the platform at the push of a button, which means faster cycle times, less physical effort, and less wear on any single component compared to a mechanical system. That reliability and speed makes hydraulic the standard choice for high-traffic, high-frequency docks — it's also the highest upfront cost of the four types, and it introduces a pump, cylinder, and seals as new potential failure points.

Air-Powered Levelers

Instead of a hydraulic cylinder, an air-powered leveler uses an inflatable air bag to lift the platform. Fewer moving parts than hydraulic, generally easier to maintain, and a common choice where cleanliness matters (air-powered units are popular in food and beverage facilities). The tradeoff is a slightly slower cycle than hydraulic and reduced performance in very cold climates, where the air bag and blower assembly are more exposed to temperature effects.

Edge-of-Dock (EOD) Levelers

Rather than sitting in a recessed pit, an EOD leveler mounts directly to the dock face with a hinged lip and a much smaller range of vertical travel. They're compact, the least expensive to install since there's no pit construction involved, and a good fit where trailer bed heights are consistent and volume is light to moderate. What you give up is flexibility — an EOD leveler can't handle the height swings a recessed unit can.

Recessed (Pit-Style) vs. Vertical-Storing vs. Edge-of-Dock

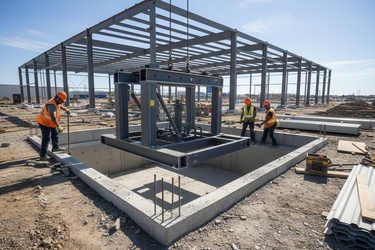

Separate from the power source, mounting style determines how much height variation the leveler can absorb. A recessed, pit-style leveler sits in a concrete pit below the dock floor and typically offers the widest operating range — commonly in the ±12 inch range from dock height — which makes it the more forgiving choice when you're loading a mix of trailer types and bed heights. Vertical-storing levelers stow upright inside a smaller pit when not in use and trade some of that operating range (often closer to ±3–5 inches) for a smaller footprint. Edge-of-dock units, as covered above, skip the pit entirely and offer the least travel of the three. If your dock sees anything other than a consistent fleet of same-height trailers, a recessed pit-style unit is almost always the safer spec.

Sizing It Right: Capacity, Width, Length, and Lip Projection

Capacity. Dock leveler capacity is sized off the forklift, not the pallet — specifically, the gross vehicle weight (GVW) of the heaviest loaded forklift that will cross it. For standard, light-to-normal duty operations, the rule of thumb is capacity ≥ GVW × 2.5. For high-frequency or heavy-duty operations — multiple shifts, dense pallet loads, coil or machinery handling — that multiplier moves up to GVW × 3 to 4. If your calculated number falls between two standard capacity ratings, round up rather than down; a leveler sized to the exact threshold has no margin for a heavier forklift down the road.

Width and length. Standard platform widths run 6 to 7 feet, with 7 feet increasingly common where facilities load side-by-side or run wider pallet jacks. Length typically runs 6 to 10 feet, with 8 feet the most common spec — length isn't arbitrary, it determines ramp slope, and slope has to stay within what your material handling equipment can safely climb (manual pallet trucks tolerate the least grade, internal combustion forklifts the most). A leveler that's too short for the height differential it's bridging creates a steeper incline than your equipment — or your operators — should be dealing with.

Lip projection. ANSI MH30.1 requires the lip to extend at least 4 inches into the trailer bed. Standard lip length is 16 inches, but refrigerated trailers with a recessed interior bed frequently need an 18–20 inch lip to actually reach the load floor — worth confirming before you order if reefer trailers are part of your regular trailer mix.

Matching Dock Height and Pit Depth

Dock height range and pit depth are where new-leveler orders most commonly go wrong — get the pit depth off by even a couple of inches and the unit won't seat flush, which throws off lip clearance at the wrong dock height. We've written a full walkthrough on how to measure pit depth correctly, and if your dock is already seeing trailers that don't line up consistently, that's usually a height-mismatch problem rather than a leveler problem — see our guide on diagnosing dock height mismatches before you assume the leveler itself needs replacing.

Environmental and Duty-Cycle Factors

A few conditions push the type decision beyond traffic volume alone:

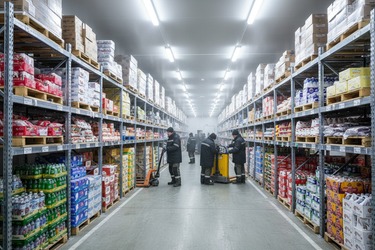

Cold storage facilities need insulated levelers to maintain the thermal barrier at the dock opening — and if you're leaning toward air-powered, know that performance drops in very cold conditions. Wash-down environments (food and beverage, pharma) call for sealed units that won't trap moisture or contaminants in exposed mechanisms. Dusty or high-particulate environments put extra wear on exposed hydraulic cylinders and linkages, which is where a cleaner, fewer-moving-parts design like air-powered often earns its keep despite the cycle-speed tradeoff.

Already Have a Leveler? Why Type ID Still Matters

If you're not speccing a new dock but troubleshooting or maintaining what's already installed, identifying the type and brand correctly is the difference between ordering the right part on the first try and guessing. Hydraulic, mechanical, and air-powered systems don't share components, and even within one type, Rite-Hite, Blue Giant, Kelley, Serco, and Poweramp parts are rarely interchangeable — see our brand comparison guide for how to tell them apart, and our note on when OEM parts are worth the premium over generic aftermarket. If you're not sure what you're looking at, send us photos of the leveler — nameplate, mechanism, and pit — and we'll help you identify the model before you order anything.

Quick Decision Checklist

Before you spec or replace a dock leveler, you should be able to answer:

1. What's the GVW of the heaviest forklift that will cross it, and does your target capacity include a margin above the calculated minimum?
2. Is trailer bed height consistent, or does it vary enough to need a recessed pit-style unit instead of edge-of-dock?
3. Does your trailer mix include refrigerated units that need extended lip projection?
4. Does the facility have cold storage, wash-down, or high-particulate conditions that should steer the type decision?
5. If you're replacing rather than specifying new — do you know the exact brand and model, or do you need help identifying it first?

Not sure where you land on any of these? Send us your dock specs — pit dimensions, trailer types, traffic volume — and we'll help you confirm the right fit before you order.
